Product Description
Prime Design ErgoRack Middle CrossBar Kit 78" CBR-0006
New replacement white Gen 4 middle cross bar kit in the 78 inch family for Prime Design ErgoRacks. Crossbars connect to the vehicle mounting brackets and allows for installation of various feature kits such as End Stops, Clamp Down, Standard Rotation, Slide-Rotation and Driveshaft Handles.
Designed to fit Ford Transit - Low Roof 84 IN** vans.
Ships in 2-3 weeks directly from Prime Design. Returns are not available for factory made-to-order items. Order cancellation is available within 5 days from date of order.
*For Canada orders: Import fees may apply from the carrier at the time of delivery.
Does not include vehicle mounting brackets, feature kits or driveshaft handles.

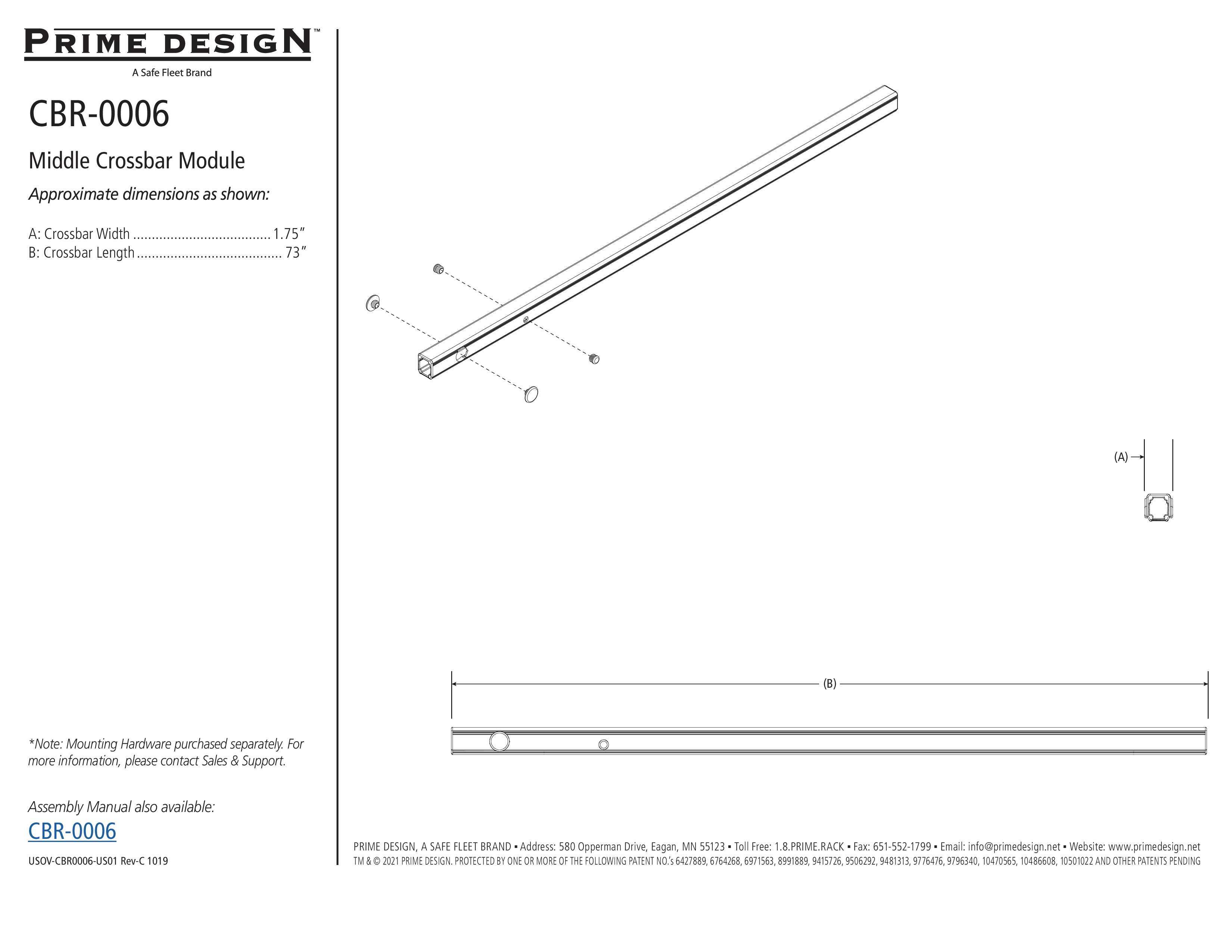

Dimensions:

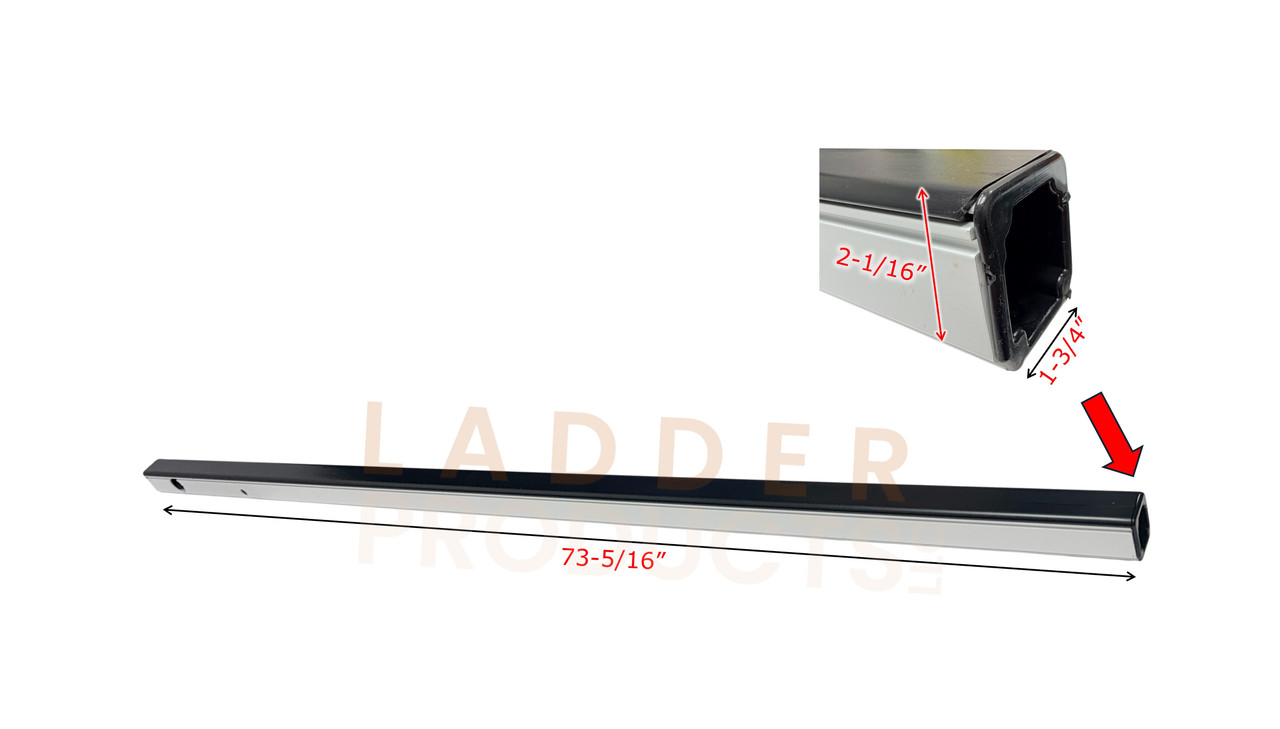

- Middle Crossbar Length: 73"

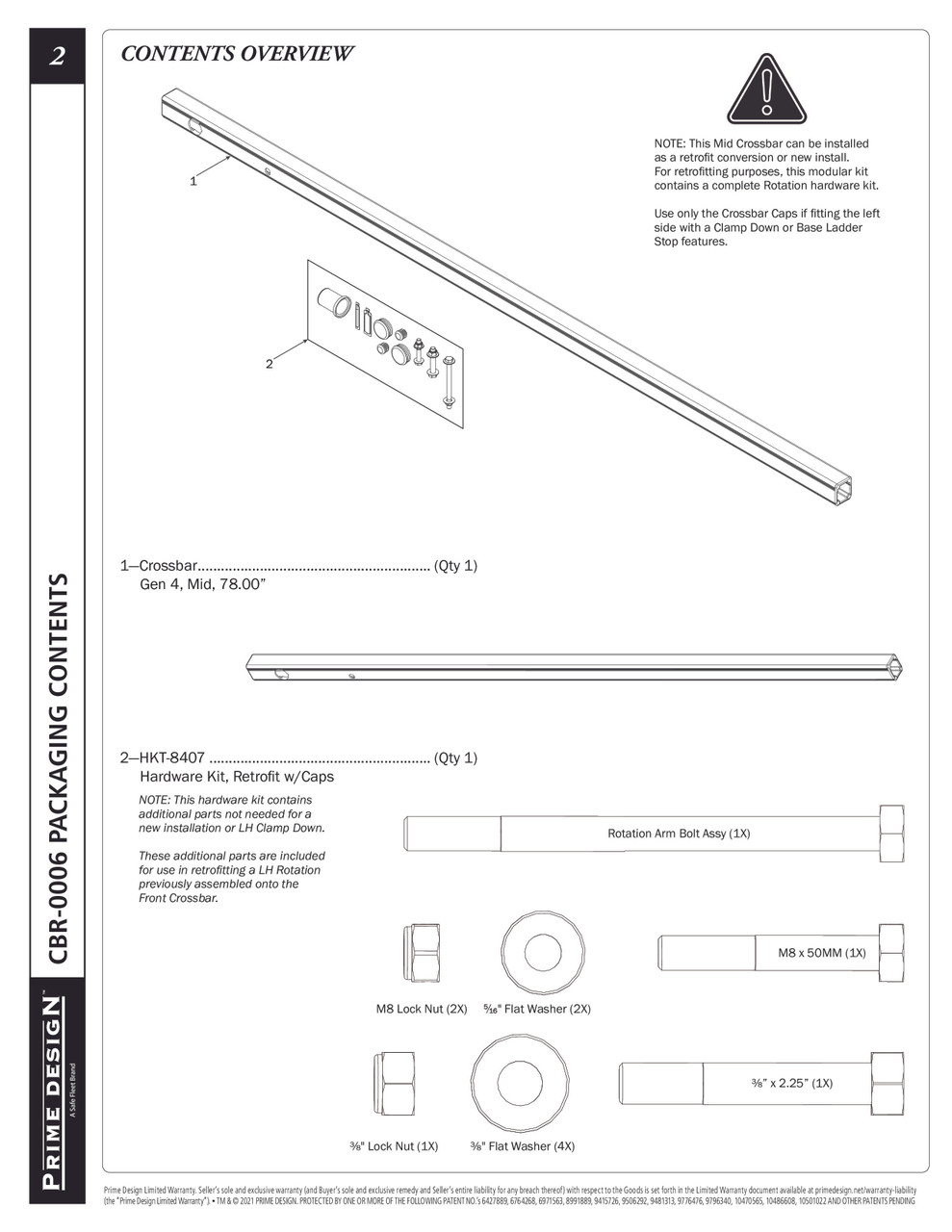

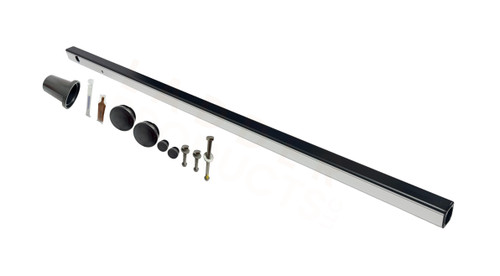

Kit Includes:
- (1) Middle Crossbar, 78” Family CBR-7210-78
- (1) Hardware Kit HKT-8407
- Installation Instructions
Fits: Ford Transit - Low Roof 84 IN**

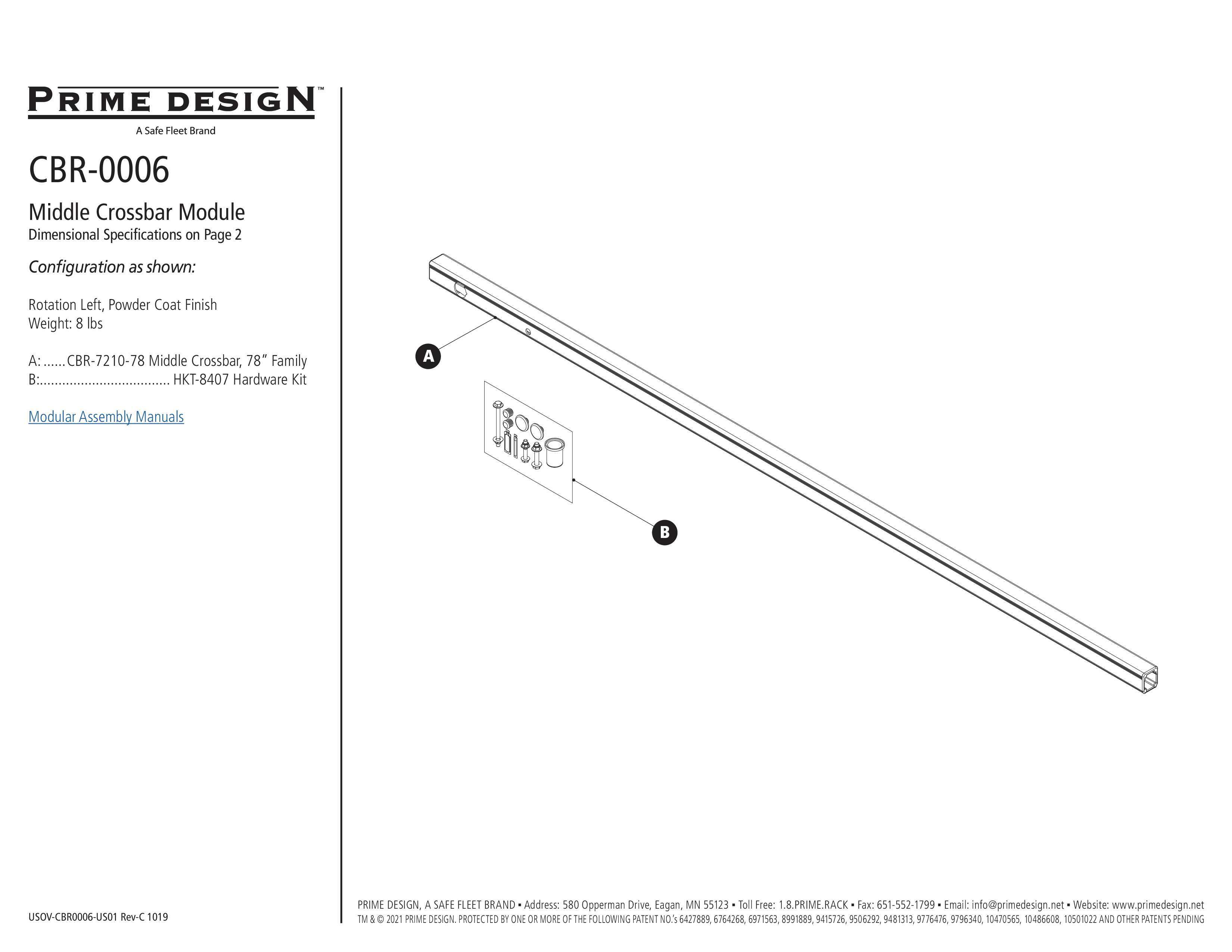

Click here for the CBR-0006 Overview
Click here for the CBR-0006 Manual
**One 5′ connecting bar (FEA-0022) is required per rotation feature for 7′ or 8′ crossbar spacing on Low Roof (84 IN) Ford Transit vans. FEA-0022 is ordered separately.
Notes: Crossbar spacing and the vehicle’s wheelbase length will dictate the ladders that can be carried. Crossbars can be spaced at five, six, seven, or eight feet. A third crossbar can be spaced four, five, six, or seven feet. If carrying a long extension ladder and a short step ladder, a three crossbar rack is suggested. Check the vehicle manufacturer’s recommendation for roof capacity weight limits.
Van Crossbar Spacing and Ladder Size Guide
| Crossbar Spacing | Step Ladder Size | Extension Ladder Size |
| 4 ft spacing | 6 – 8 ft. | 16 – 20 ft. |
| 5 ft spacing | 8 – 10 ft. | 16 – 24 ft. |
| 6 ft spacing | 8 – 12 ft.*** | 16 – 28 ft. |
| 7 ft spacing | 10 – 12 ft.*** | 20 – 32 ft. |
| 8 ft spacing | 10 – 12 ft.*** | 20 – 36 ft. |
***12 ft. step ladders may require an extended upper add-on component
