Product Description

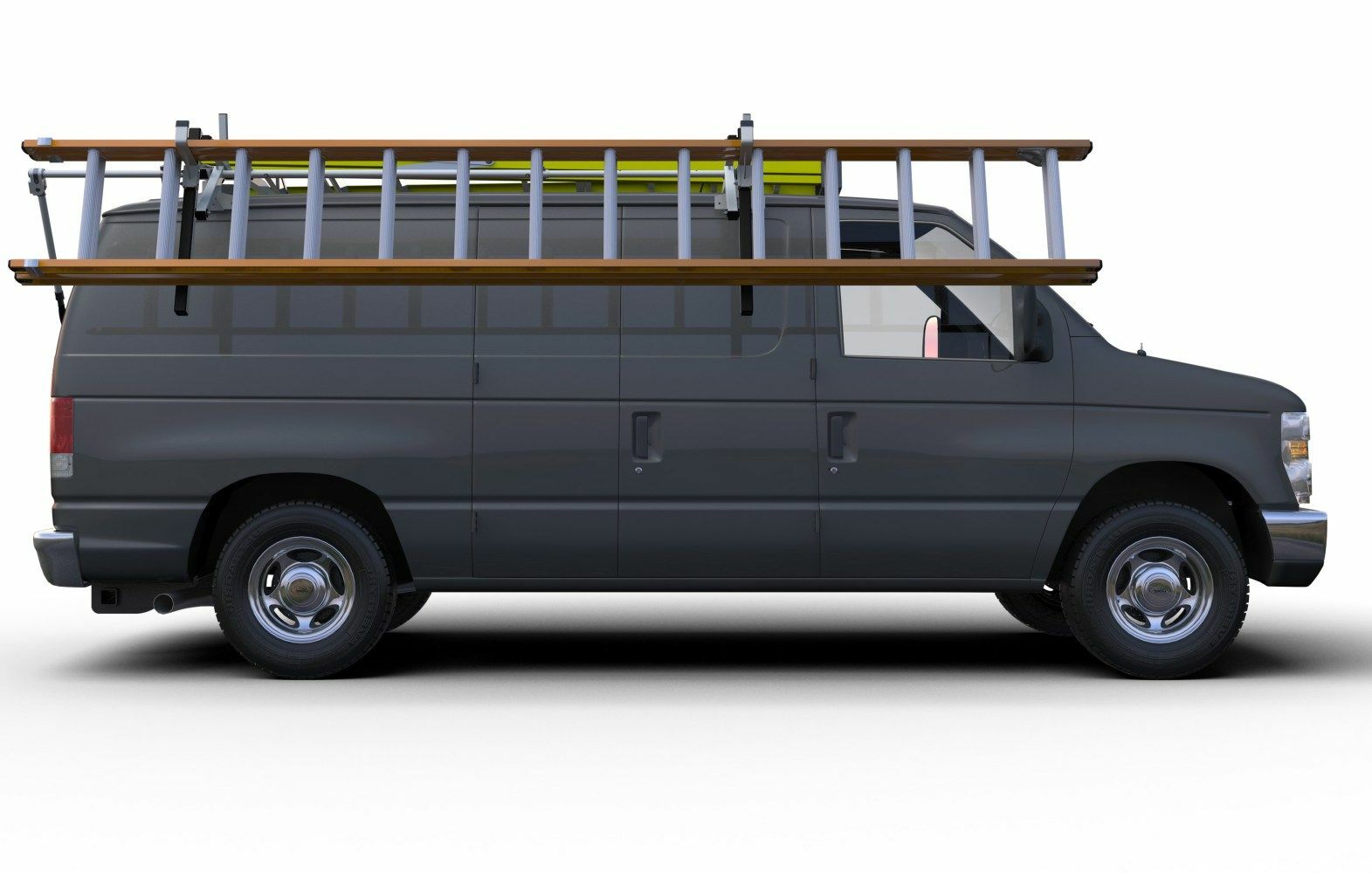

Prime Design ErgoRacks Ford Econoline E-Series
Build Your Own Custom Ladder Rack with a Prime Design Modular ErgoRack for Ford E-150, E-250, E-350 vans with an 82 IN Roof on all Wheelbases.
Choose your features and customizations:
- Base - End Stops
- Clamp Down
- Standard Rotation
- Middle Crossbar
Ships in 2-3 weeks directly from Prime Design. Returns are not available for factory made-to-order items. Order cancellation is available within 5 days from date of order.
*For Canada orders: Import fees may apply from the carrier at the time of delivery.
Prime Design ErgoRacks are shipped as modular components and requires assembly. Each ErgoRack modular kit comes with installation hardware and instructions. Includes vehicle roof gutter mounting bracket kit in black color.
Prime Design has been the industry’s ergonomic leader since 1992, when they first introduced the concept of an ergonomic ladder rack.
Their design philosophy starts with the worker – how can they make the job safer, easier and more comfortable for the human body? That is because they firmly believe that a product’s design and how it impacts the user is every bit as important as the quality of materials and construction.
The ErgoRack was designed to reduce muscle stress, eliminate risk of injury and speed the job of loading and unloading ladders from a work van.
| Model | Vehicle Wheelbase | Vehicle Height | Vehicle Mounting Kit | Front/Rear Crossbars | Middle Crossbar | Streetside Feature | Curbside Feature | Weight |
| VBB-FES-M | 138 IN | 82 IN | FBM-1068-BLK | CBR-0003 | FEA-0001 | FEA-0001 | 27 LBS | |
| VBC-FES-M | 138 IN | 82 IN | FBM-1068-BLK | CBR-0003 | FEA-0001 | FEA-0008 | 42 LBS | |
| VCB-FES-M | 138 IN | 82 IN | FBM-1068-BLK | CBR-0003 | FEA-0008 | FEA-0001 | 42 LBS | |
| VBR-FES-M | 138 IN | 82 IN | FBM-1068-BLK | CBR-0003 | FEA-0001 | FEA-0002 | 75 LBS | |
| VRB-FES-M | 138 IN | 82 IN | FBM-1068-BLK | CBR-0003 | FEA-0002 | FEA-0001 | 75 LBS | |
| VCC-FES-M | 138 IN | 82 IN | FBM-1068-BLK | CBR-0003 | FEA-0008 | FEA-0008 | 57 LBS | |
| VCR-FES-M | 138 IN | 82 IN | FBM-1068-BLK | CBR-0003 | FEA-0008 | FEA-0002 | 95 LBS | |
| VRC-FES-M | 138 IN | 82 IN | FBM-1068-BLK | CBR-0003 | FEA-0002 | FEA-0008 | 95 LBS | |
| VRR-FES-M | 138 IN | 82 IN | FBM-1068-BLK | CBR-0003 | FEA-0002 | FEA-0002 | 124 LBS | |
| VBB3-FES-M | 138 IN | 82 IN | FBM-1067-BLK | CBR-0003 | CBR-0004 | FEA-0001 | FEA-0001 | 41 LBS |
| VCC3-FES-M | 138 IN | 82 IN | FBM-1067-BLK | CBR-0003 | CBR-0004 | FEA-0008 | FEA-0008 | 71 LBS |
| VCR3-FES-M | 138 IN | 82 IN | FBM-1067-BLK | CBR-0003 | CBR-0004 | FEA-0008 | FEA-0002 | 105 LBS |
| VRC3-FES-M | 138 IN | 82 IN | FBM-1067-BLK | CBR-0003 | CBR-0004 | FEA-0002 | FEA-0008 | 105 LBS |
| VRR3-FES-M | 138 IN | 82 IN | FBM-1067-BLK | CBR-0003 | CBR-0004 | FEA-0002 | FEA-0002 | 132 LBS |
